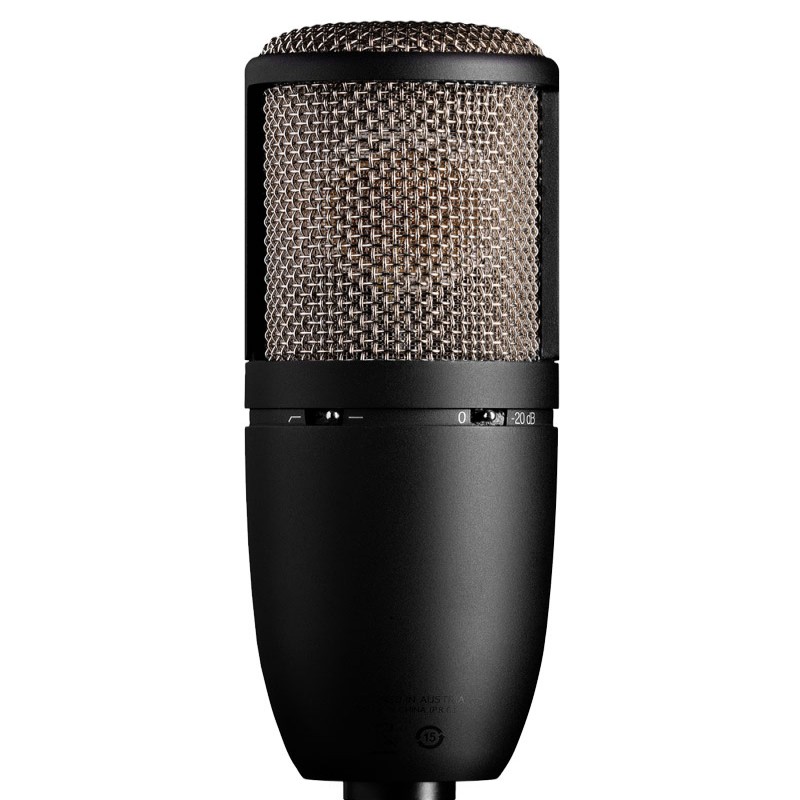

High-performance dual-capsule true condenser microphone
Equivalent noise level 15 dB-A
Sensitivity 28 mV/Pa
Signal to Noise 79 dB-A
Preattenuation Pad -20 dB
Bass cut filter 300 Hz - 12 dB/octave
Electrical impedance <= 200 Ohms
Recommended load impedance >= 1000 Ohms
Polar Patterns Cardioid, Omnidirectional, and Figure of eight
Diameter 54 mm
Net Weight 530 g
Gender Male
Contacts 3-pin
Current <= 3 mA
Horns / Woodwinds Yes
Drums / Percussion Yes
General Specifications
Audio frequency bandwidth 20 - 20000 HzEquivalent noise level 15 dB-A
Sensitivity 28 mV/Pa
Signal to Noise 79 dB-A
Preattenuation Pad -20 dB
Bass cut filter 300 Hz - 12 dB/octave
Electrical impedance <= 200 Ohms
Recommended load impedance >= 1000 Ohms
Polar Patterns Cardioid, Omnidirectional, and Figure of eight
imensions
Length 165 mmDiameter 54 mm
Net Weight 530 g
Audio Output
TypeBalanced XLRGender Male
Contacts 3-pin
Powering Interface
Voltage 44 to 52 VCurrent <= 3 mA
Application
Project Studio YesInstrument
Piano / Strings YesHorns / Woodwinds Yes
Drums / Percussion Yes
